7 kW
A+

Perla 7

7 kW
A+
Ventilated – Pellet Air

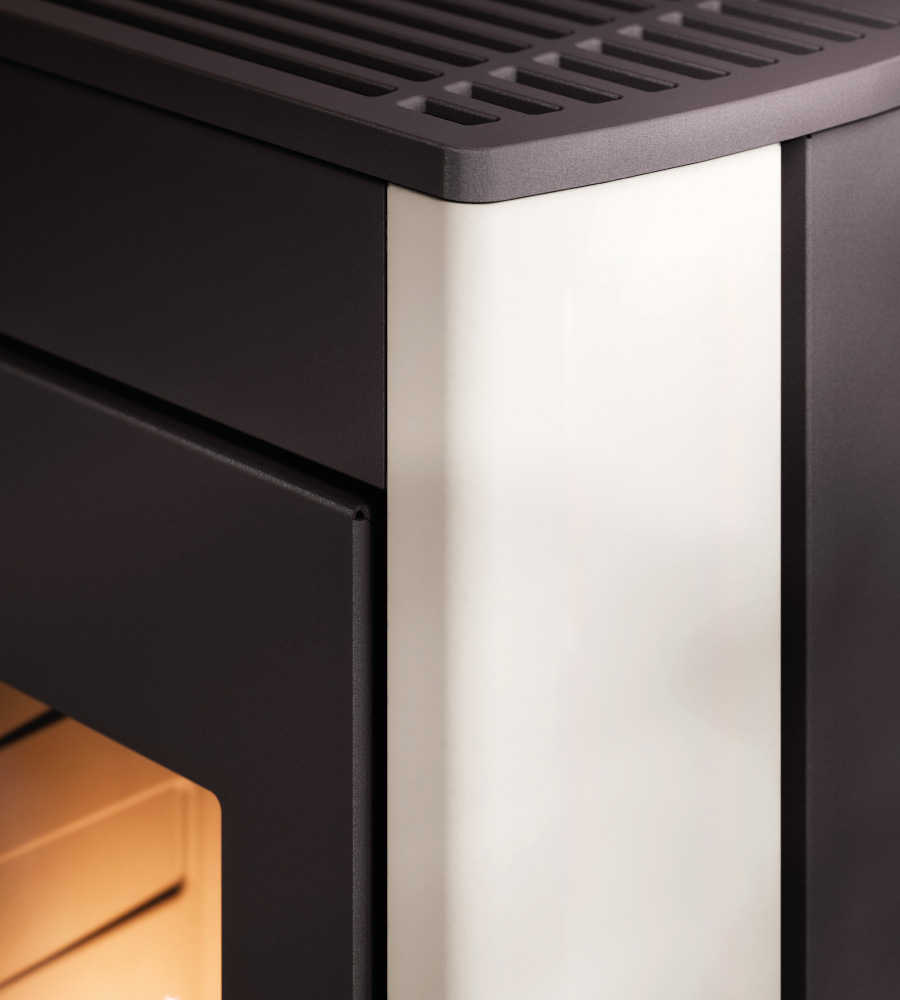

Our Perla unit has been given a new look, with new finishes for its steel sides, and new shapes for the cast iron top, plus the addition of an innovative furnace. The sealed chamber comes standard; ceramic sides optional.


Heatable volume min/max
83/200 m3

Hopper capacity
15 kg

668

Shield

596

Sealed chamber

609

Cast iron burning pot

705 717

Integrated Wi-Fi and Bluetooth

926

Back exhaust


Available finishes

Stove packing:
L 80 cm H 117 cm P 60 cm

Stove packing:
L 80 cm
H 117 cm
P 60 cm

Available finishes

Select the finish to view

Majolica
White
Ivory
Red
Steel
White
Red
Anthracite

Technical data

Nominal power
7 kW

Heating input
7,9 kW

Heatable volume min/max
83/200 m3

Heatable surface min/max
31/74 m2

Hopper capacity
15 kg

Range min/max
9/25 h

Hourly consumption min/max
0,6/1,7 kg/h

Nominal performance
89%

Reduced performance
90%

Reduced power
2,9 kW

Net weight
60/67 kg

Pellet fuel
Ø 6 mm

Exhaust fumes
Ø 80 mm

Hole combustion air inlet
Ø 60 mm


Features

Shield

Sealed chamber

Cast iron burning pot

Integrated Wi-Fi and Bluetooth

Connection to the external thermostat

Daily weekly programming

Remote control (optional)

Back exhaust


Certifications

Certificate model name: PERLA 7 T2


7025101
