12 kW
Mithos Plus 12 Up – Twin
12 kW
Ducted – Pellet Air Plus
This ductable stove with multiple installation solutions features a minimal design and reduced depth. The two lower ventilation grilles ensure better air distribution throughout the home. Available in 12 and 14kW versions.
Heatable volume min/max
108/342 m3
Hopper capacity
23 kg

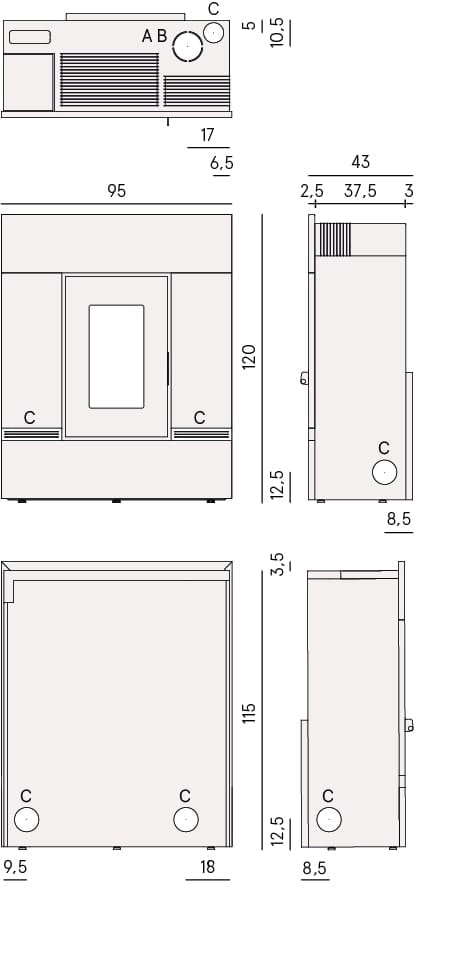

621
717
2366
768
914
Cast iron door
Integrated Wi-Fi and Bluetooth
Remote control (optional)
Connection to the external thermostat
Upper exhaust
Available finishes
Stove packing:
L 79 cm H 130,5 cm P 102,2 cm
Stove packing:
L 79 cm
H 130,5 cm
P 102,2 cm
Available finishes
Select the finish to view
Steel
White
Light Bronze
Titanium
Red
Anthracite
Technical data
Nominal power
12 kW
Heating input
13,3 kW
Heatable volume min/max
108/342 m3
Heatable surface min/max
40/127 m2
Hopper capacity
23 kg
Hourly consumption min/max
0,86/3 kg/h
Nominal performance
90%
Reduced performance
93,5%
Reduced power
3,8 kW
Net weight
165 kg
Pellet fuel
Ø 6 mm
Exhaust fumes
Ø 80 mm
Hole combustion air inlet
Ø 130 mm
Ducting outlet
Ø 80 mm
Ducting outlet
Features
Integrated concentric outlet (80 – 130 mm)
Cast iron door
Sealed chamber
Cast iron burning pot
Cast iron inner with 2nd combustion air
Duction with 2 independent motors
Comfort mode
Integrated Wi-Fi and Bluetooth
Remote control (optional)
Connection to the external thermostat
Daily weekly programming
Top and rear ducting
Upper exhaust
