7 kW
A+

Bold 7 Up-Twin

7 kW
A+
Ventilated – Pellet Air

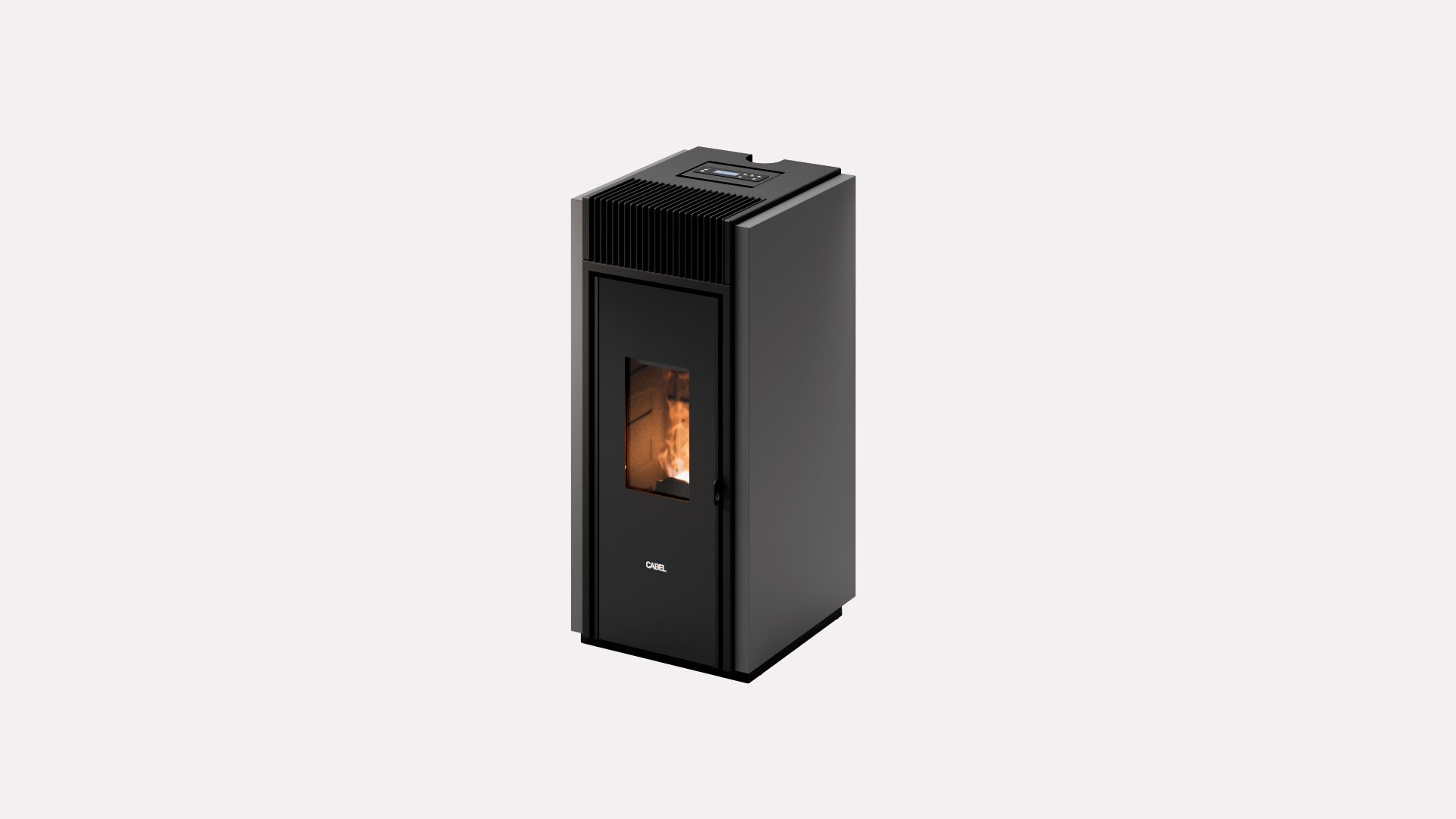

This 7kW ventilated stove is equipped with an integrated top coaxial exhaust. Bold, aesthetically designed grill with top and front ventilation for more even heat distribution. It has a combustion chamber with a cast-iron back and the door is finished with black screen-printed glass. With integrated Bluetooth and Wi-Fi set-up, it can be programmed and managed remotely via app from your smartphone.

Heatable volume min/max
83/200 m3

Hopper capacity
16 kg

572

Integrated concentric outlet (80 – 130 mm)

609

Cast iron burning pot

730

Comfort mode

717

Integrated Wi-Fi and Bluetooth

914

Upper exhaust


Available finishes

Stove packing:
L 80 cm H 117 cm P 60 cm

Stove packing:
L 80 cm
H 117 cm
P 60 cm

Available finishes

Select the finish to view

Steel
White
Titanium
Anthracite

Technical data

Nominal power
7 kW

Heating input
7,9 kW

Heatable volume min/max
83/200 m3

Heatable surface min/max
31/74 m2

Hopper capacity
16 kg

Range min/max
9/27 h

Hourly consumption min/max
0,6/1,7 kg/h

Nominal performance
89%

Reduced performance
90%

Reduced power
2,9 kW

Net weight
75 kg

Pellet fuel
Ø 6 mm

Exhaust fumes
Ø 80 mm

Hole combustion air inlet
Ø 130 mm


Features

Integrated concentric outlet (80 – 130 mm)

Shield

Sealed chamber

Cast iron burning pot

Comfort mode

Integrated Wi-Fi and Bluetooth

Remote control (optional)

Connection to the external thermostat

Daily weekly programming

Upper exhaust


Certifications

Certificate model name: BOLD 7 UP-TWIN T2


7025001
