9 kW
A+

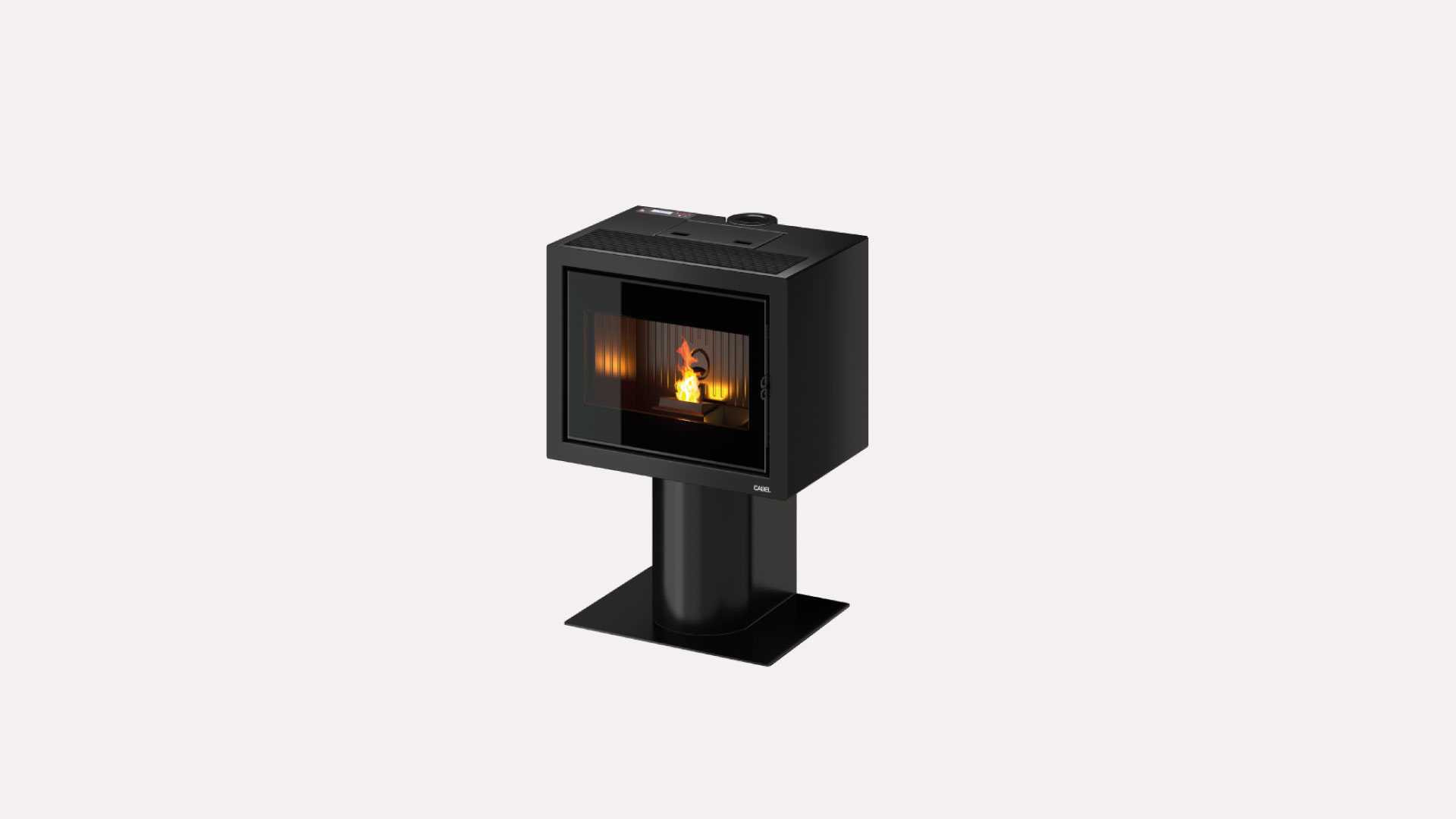

Quasimodo 9 Up-Twin

9 kW
A+
Ventilated – Pellet Air

The new hermetically sealed stove that looks like fine furniture, with a large front window to let the fire be the star of the show. Entirely cast-iron firebox, 9 kW of power to suit larger spaces and an upper fume outlet.


Heatable volume min/max
98/252 m3

Hopper capacity
11,5 kg

572

Integrated concentric outlet (80 – 130 mm)

645

Cast iron inner with 2nd combustion air

730

Comfort mode

705 717

Integrated Wi-Fi and Bluetooth

914

Upper exhaust


Available finishes

Stove packing:
L 80 cm H 117 cm P 70 cm

Stove packing:
L 80 cm
H 117 cm
P 70 cm

Available finishes

Select the finish to view

Steel
Black

Technical data

Nominal power
9 kW

Heating input
9,9 kW

Heatable volume min/max
98/252 m3

Heatable surface min/max
36/93 m2

Hopper capacity
11,5 kg

Range min/max
8/19 h

Hourly consumption min/max
0,8/2 kg/h

Nominal performance
90%

Reduced performance
91%

Reduced power
3,5 kW

Net weight
111 kg

Pellet fuel
Ø 6 mm

Exhaust fumes
Ø 80 mm

Hole combustion air inlet
Ø 130 mm


Features

Integrated concentric outlet (80 – 130 mm)

Sealed chamber

Cast iron burning pot

Cast iron inner with 2nd combustion air

Comfort mode

Integrated Wi-Fi and Bluetooth

Daily weekly programming

Connection to the external thermostat

Remote control (optional)

Upper exhaust


Certifications

Certificate model name: QUASIMODO 9 UP-TWIN T2


7025126
