Ponente 7

7 kW
A+
Pellet inserts – Pellet Air

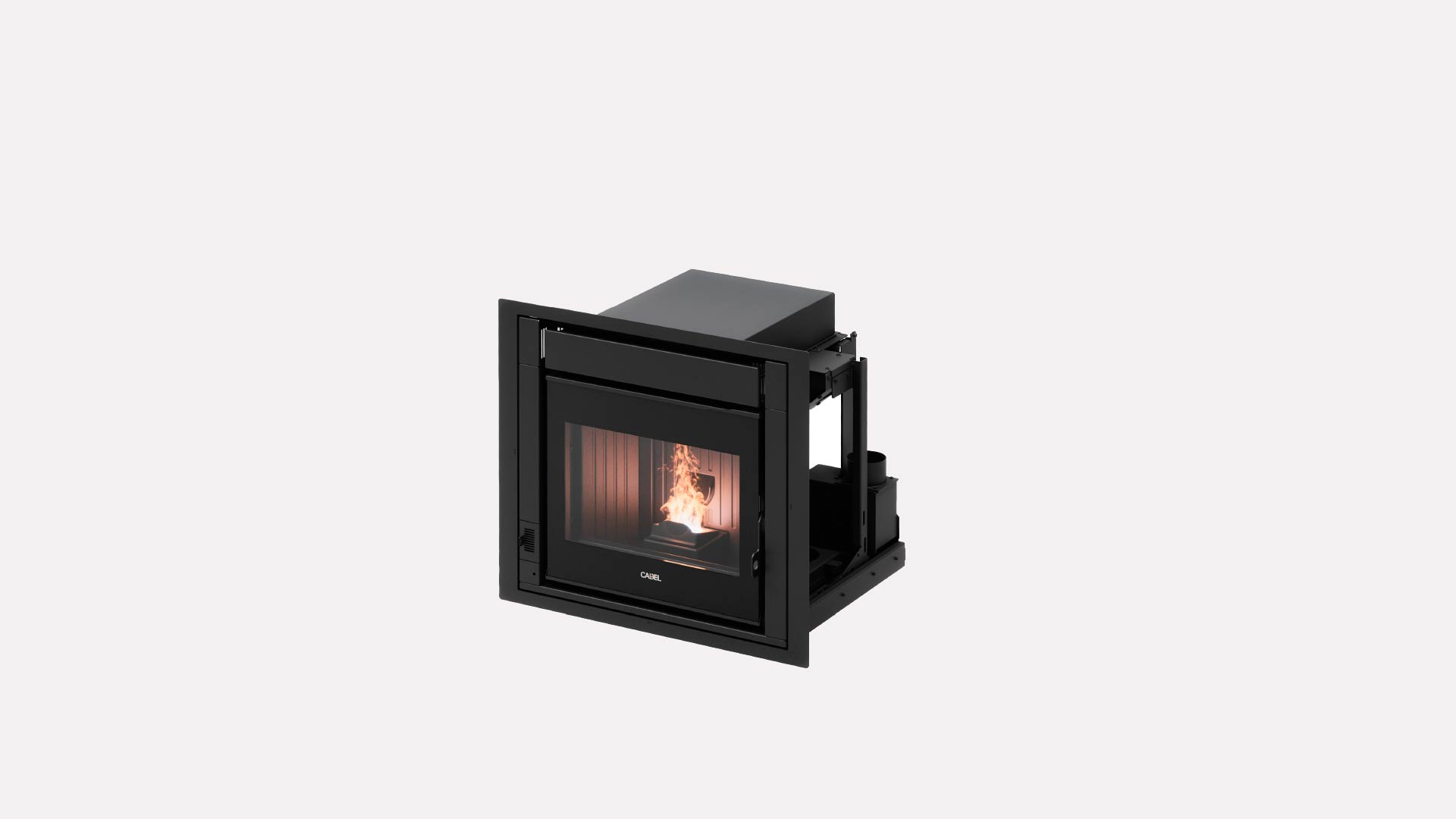

Ponente 7 is a 7kW pellet insert that perfectly adapts to existing fireplaces, thanks to its versatile design. Its design offers a wide view of the flame, which, combined with the warmth of the fire, creates a cozy and welcoming atmosphere. The pellet loading system is customizable with two extraction options, hatch or drawer. The front ventilation ensures an even distribution of heat throughout the room. This model is also certified Ecodesign 2022, ensuring high performance and low emissions.

Heatable volume min/max
71/200 m3

Hopper capacity
10 kg

5 stelle D.M. 186

GoFast

Comfort mode

Integrated Wi-Fi

Integrated Bluetooth

Upper exhaust

Available finishes

Stove packing:
L 79 cm H 71,5 cm P 70 cm

Stove packing:
L 79 cm
H 71,5 cm
P 70 cm

Available finishes

Select the finish to view

Glass
Black

Technical data

Nominal power
7 kW

Heatable volume min/max
71/200 m3

Heatable surface min/max
26/74 m2

Hopper capacity
10 kg

Range min/max
5/16 h

Hourly consumption min/max
0,6/1,7 kg/h

Nominal performance
88%

Reduced performance
89%

Reduced power
2,8 kW

Net weight
92 kg

Pellet fuel
Ø 6 mm

Exhaust fumes
Ø 80 mm

Hole combustion air inlet
Ø 60 mm

Features

5 stelle D.M. 186

GoFast

Sealed chamber

Cast iron burning pot

Cast iron inner with 2nd combustion air

Comfort mode

Integrated Wi-Fi

Integrated Bluetooth

Connection to the external thermostat

Daily weekly programming

Upper exhaust

Remote control (optional)

Certifications

Show more

Certificate model name: PONENTE 7 T1

7024003
