8,5 kW

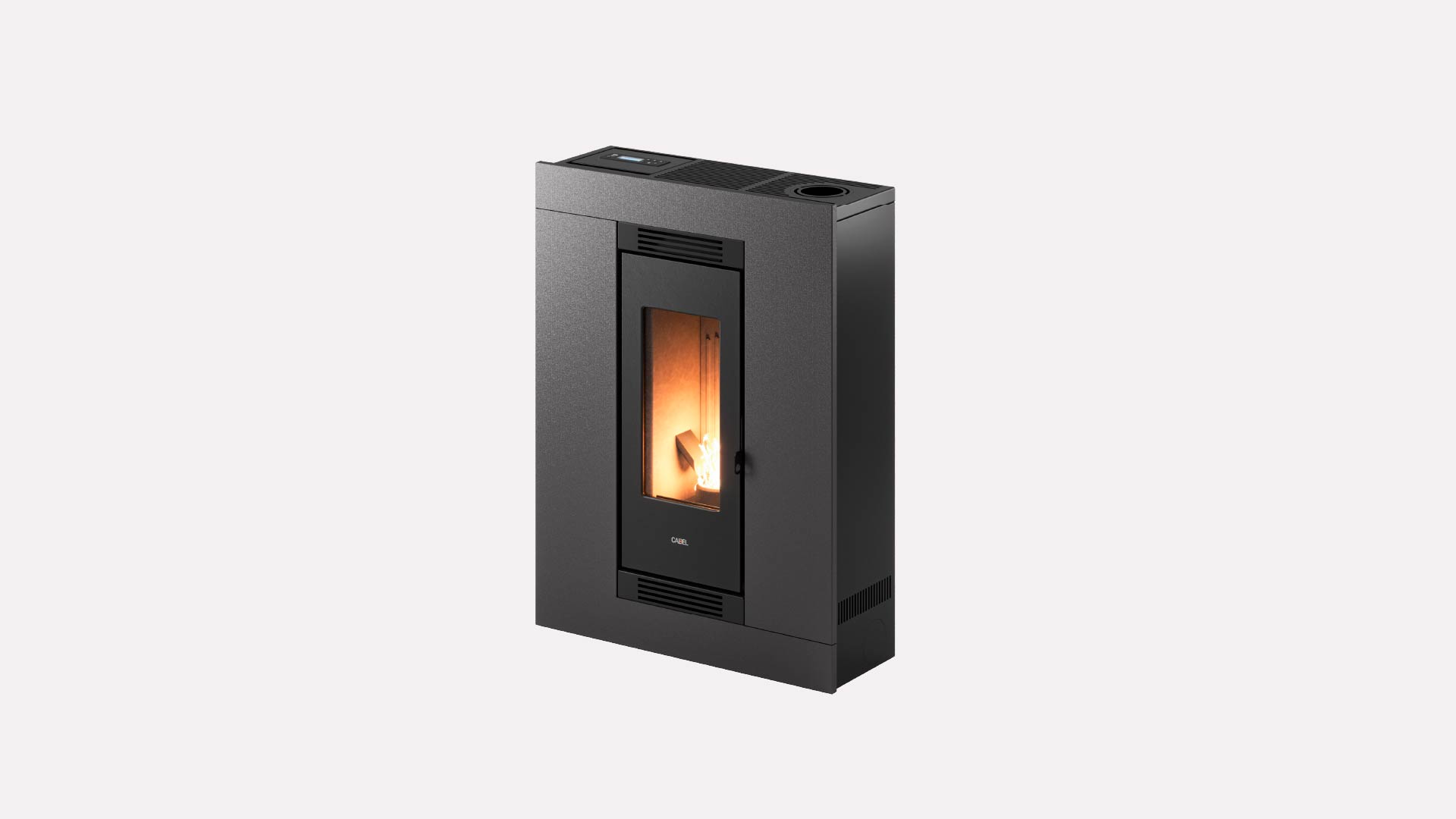

Luce Plus 9 Up-Twin
8,5 kW
Ducted – Pellet Air Plus
Modern, compact, space-saving. Thanks to its reduced depth (only 29 cm), it can be installed in corridors or small rooms. Covered in metal: white, anthracite, light bronze and titanium. Flexibility of channelling according to contextual requirements. Smoke outlet: top, optional rear, coaxial optional. Equipped with lower front grille for air outlet.
Heatable volume min/max
92/238 m3
Hopper capacity
15 kg
5 stelle D.M. 186
GoFast
Integrated concentric outlet (80 – 130 mm)
Comfort mode
Integrated Wi-Fi
Integrated Bluetooth
Upper exhaust
Available finishes
Stove packing:
L 80 cm H 118,2 cm P 102,2 cm
Stove packing:
L 80 cm
H 118,2 cm
P 102,2 cm
Available finishes
Select the finish to view
Steel
White
Light Bronze
Titanium
Anthracite
Stone
Serpentino
Technical data
Nominal power
8,5 kW
Heating input
9,9 kW
Heatable volume min/max
92/238 m3
Heatable surface min/max
34/88 m2
Hopper capacity
15 kg
Range min/max
8/21 h
Hourly consumption min/max
0,7/2 kg/h
Nominal performance
89%
Reduced performance
89%
Reduced power
3,3 kW
Net weight
97 kg
Pellet fuel
Ø 6 mm
Exhaust fumes
Ø 80 mm
Hole combustion air inlet
Ø 130 mm
Ducting outlet
Ø 80 mm
Features
5 stelle D.M. 186
GoFast
Integrated concentric outlet (80 – 130 mm)
Sealed chamber
Cast iron door
Cast iron burning pot
Cast iron inner with 2nd combustion air
Duction with 1 independent motor
Comfort mode
Integrated Wi-Fi
Integrated Bluetooth
Connection to the external thermostat
Daily weekly programming
Upper exhaust
Remote control (optional)
